Installing AFR heads and Studs

 Installing AFR heads and Studs.

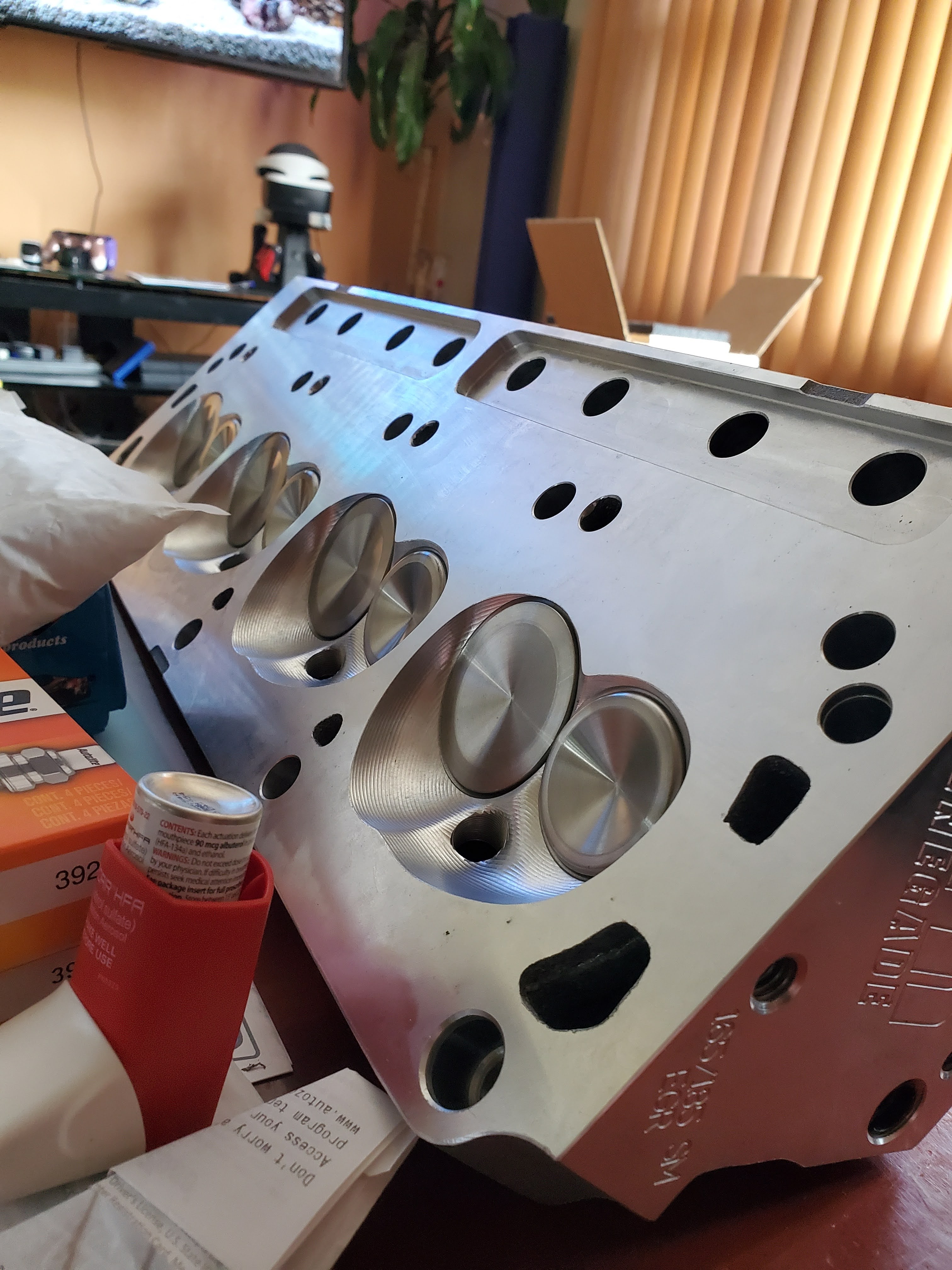

When get your parts from AFR first thing you'll notice is the excellent packaging.








Excellent job on packaging and the valves and ports on these bad boys are huge.




Machining is excellent





without guide plates and roller rocker studs installed your looking at 26.8 lbs per head




2.020 Intake Valves




















Piston to valve clearance must be checked.


The roller rocker looks offset because of the angles that AFR has taken and this is discussed in documentation.

When installing and removing heads to the block you'll want to pull the back two upper studs to provide clearnce needed when engine is in car.





More to come on this to come
